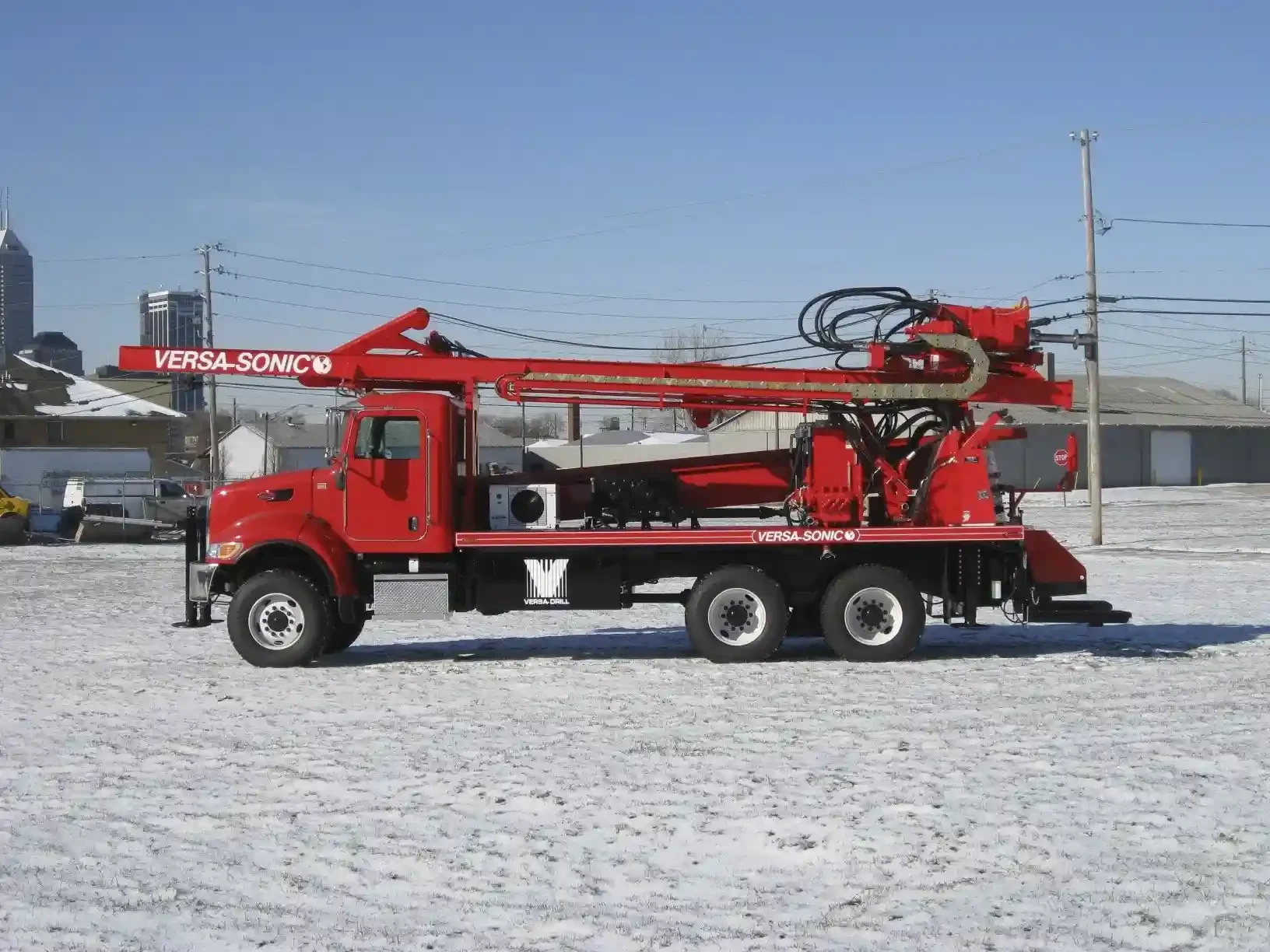

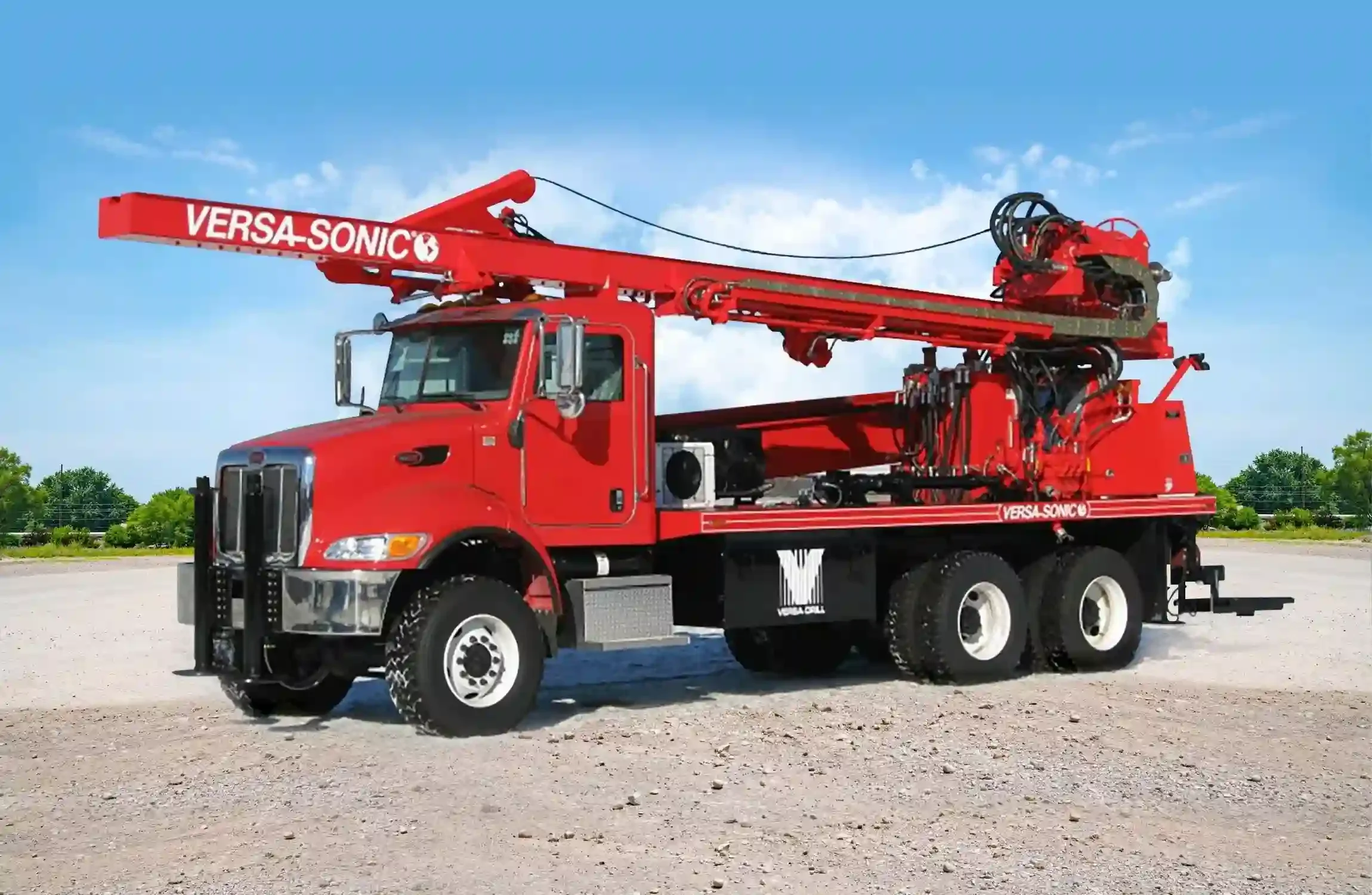

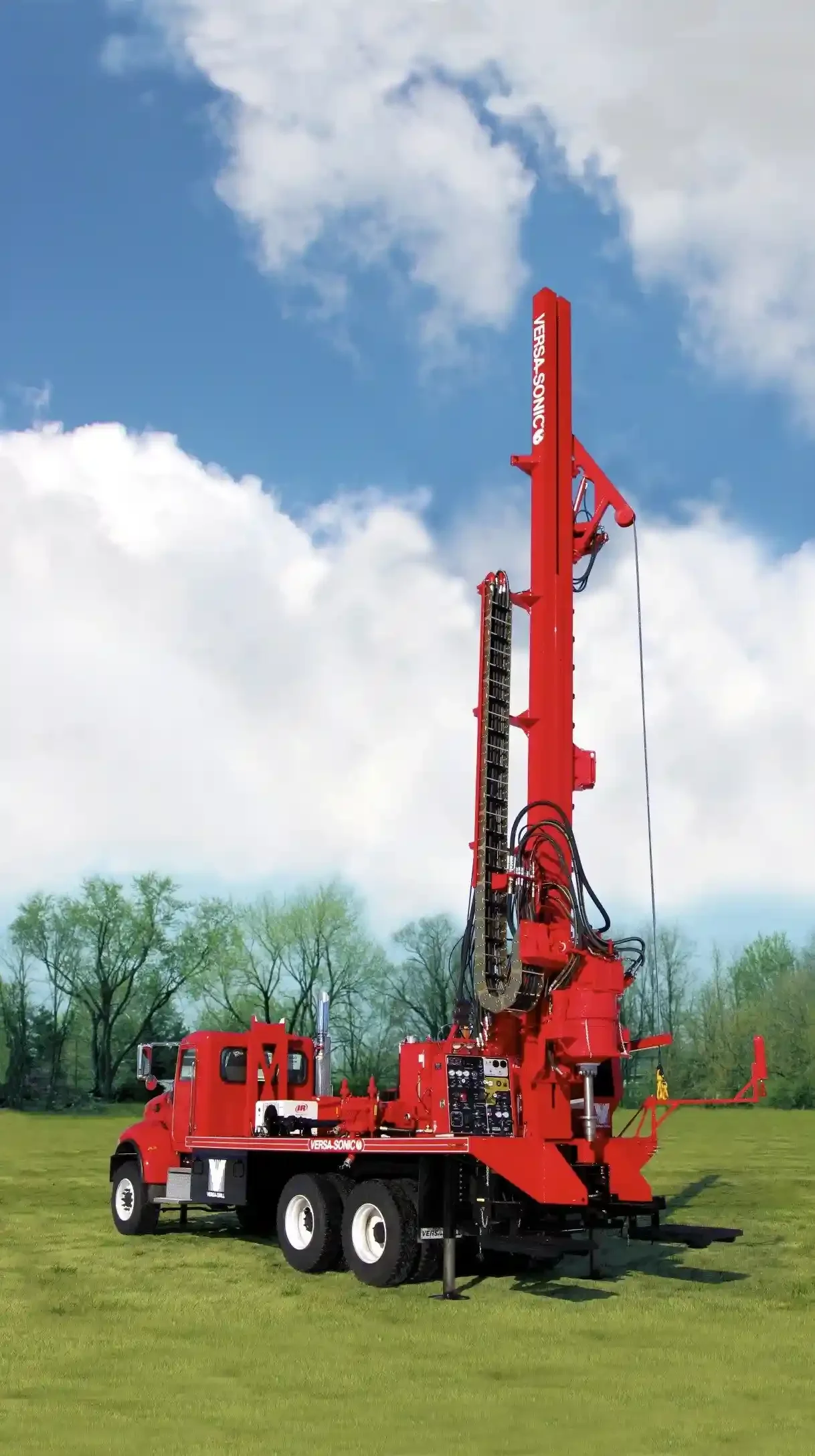

Powerful SOnic drilling Rig

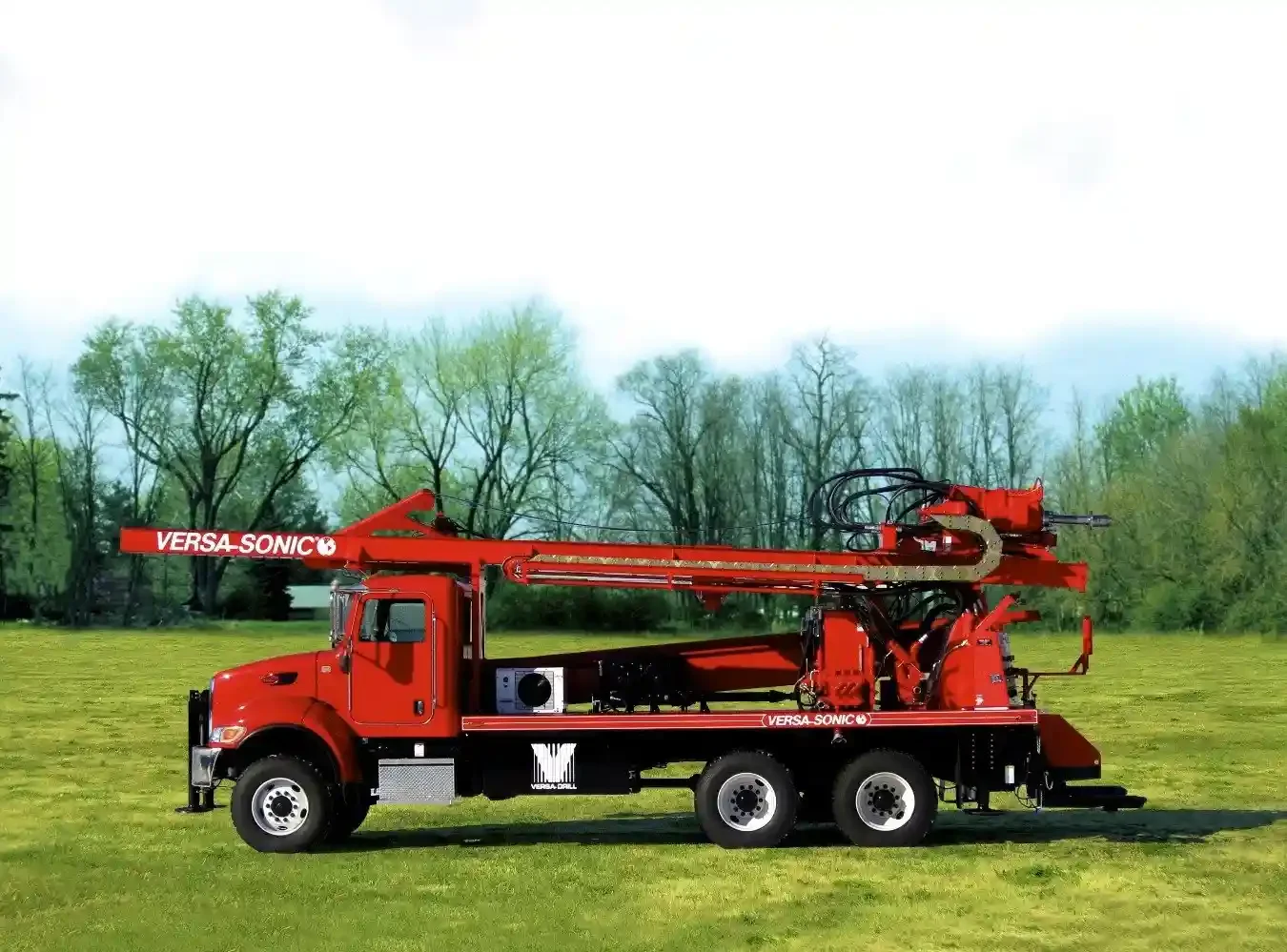

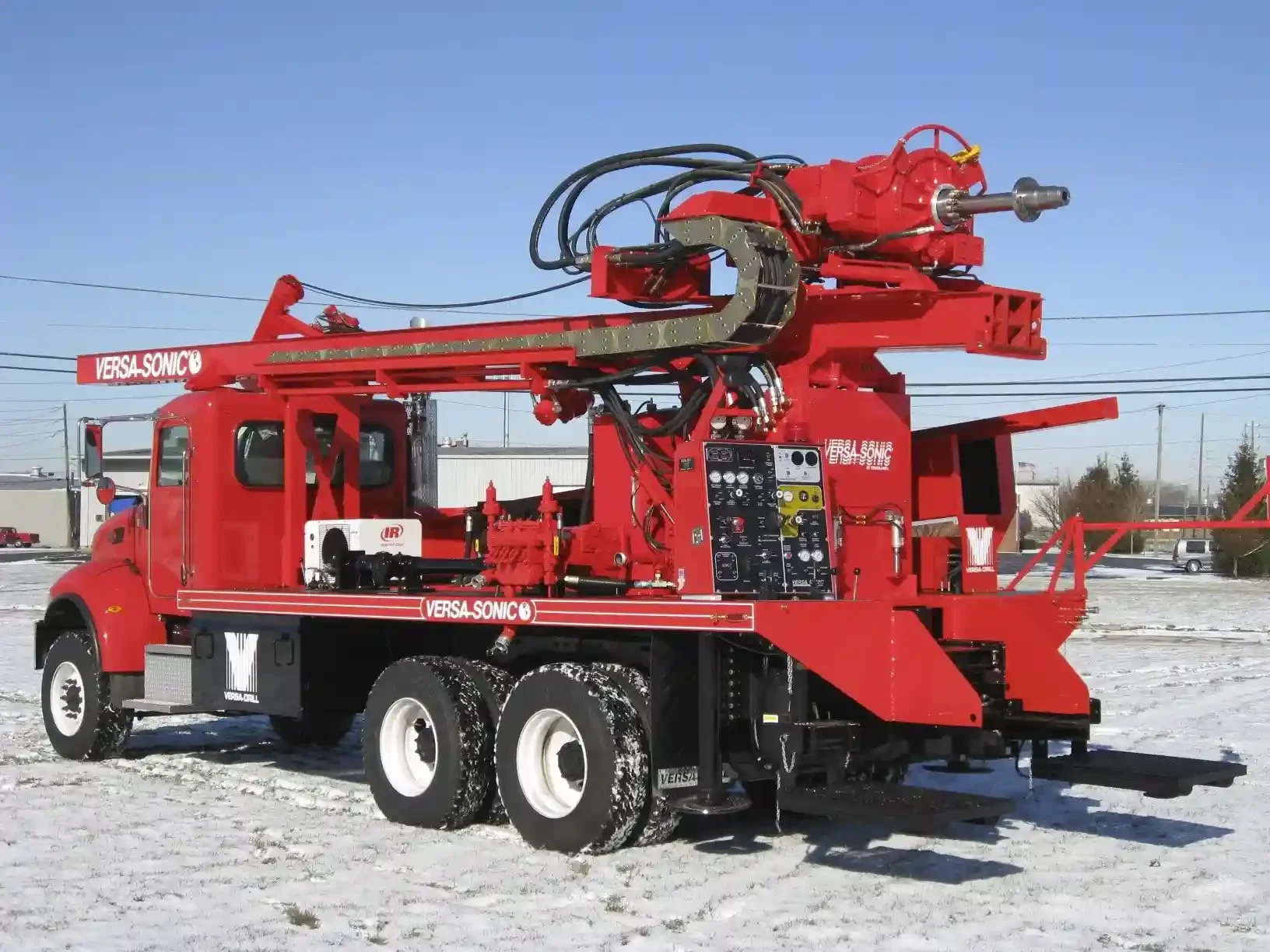

The Versa-Sonic Drilling Rig builds on our V-140X drill rig to allow for innovative soil penetration through sonic drilling.
With our proven power and simplicity, the additional sonic top head takes your drilling needs to the next level, making it easier than ever to permeate through a wide range of soils.
With 40,000 lb pullback and 21,000 lb pulldown, the sonic drilling rig Versa-Sonic will give your team the expertise to accomplish any sonic drilling requirement. Safe, effective, and durable, the Versa-Sonic stands out with ground-breaking technology and exceptional power for all your soil drilling needs.
spec sheet
Standard Features and Specifications
CARRIER
Peterbilt 548 6x4
PACCAR PX-9 with 350 HP
Allison Transmission automatic
TRANSFER CASE
Marmon-Herrington
Safe Shift control system
HYDRAULIC SYSTEM
Bosch Rexroth
3 auxiliary hydraulic connections
TOP HEAD
Sonicor 50K
DERRICK & FEED SYSTEM
26’ top head stroke
25,000 lbs pullback
22,100 lbs pulldown
MAIN WINCH
12,000 lb.
CENTRALIZER TABLE
Hydraulic breakout system
13.5” through
CONTROL PANEL
Electric over hydraulic controls
Marine grade electric switches
Hydraulic joysticks
4” touch screen display
Twin aluminum platforms
Aluminum console cover
LEVELING JACKS
Four 36” stroke independently controlled with precision digital inclinometer leveling
WORK LIGHTS
4 LED night lights
TOOLBOXES
59”x24”x26”
24”x24”x26”
12”x12”x32”
OVERALL DIMENSIONS
Length: 35’10”
Width: 8’

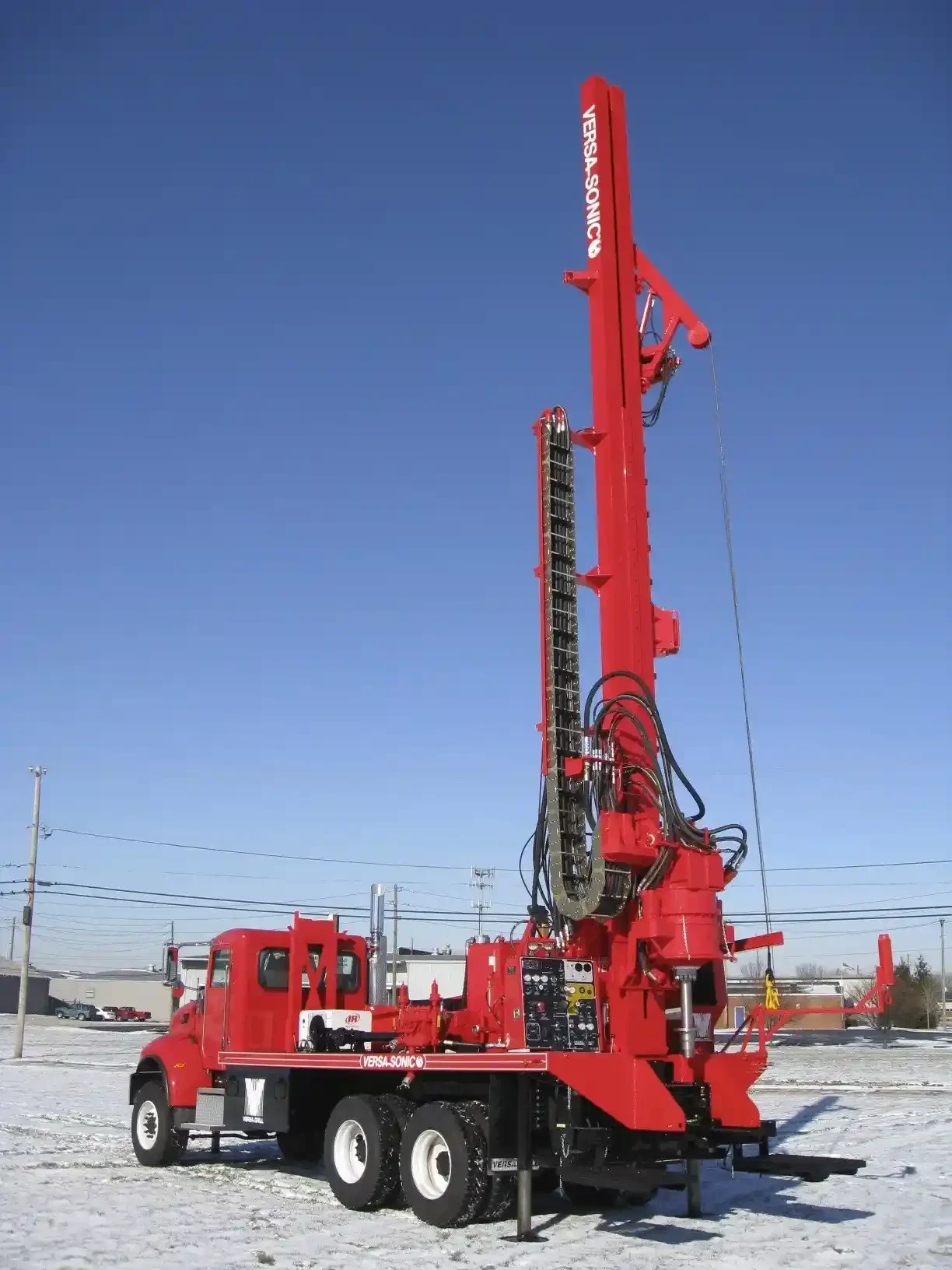

Derrick up height: 40’
Derrick down height: 13’2”
Options/Upgrades (at additional cost)
MAIN WINCH
18,000 lb. (bare drum)
AUXILIARY WINCH
4,000 lb.
AIR COMPRESSOR
45 cfm/150 psi Vanair
500 cfm/200 psi Vanair
WATER INJECTION
75 gpm American Mfg Company
ADDITIONAL OPTIONS
In-deck grouter (multiple options)
Hose reel (multiple options)
Aluminum catwalk
Remote pendant for winches & jib boom
Versa-Rod spinner
Versa-Drill Versa-Sonic

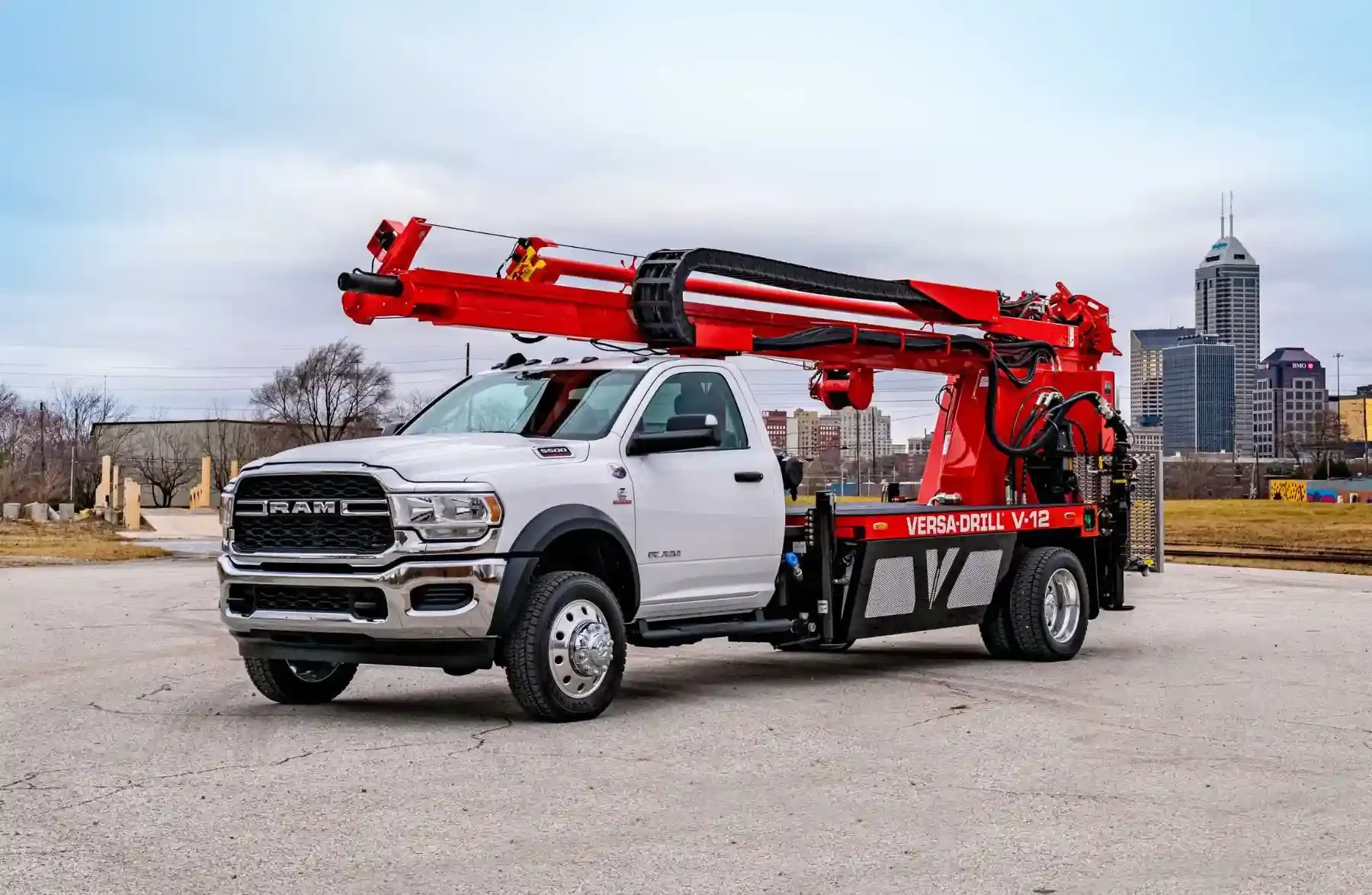

Versa-Drill V-12

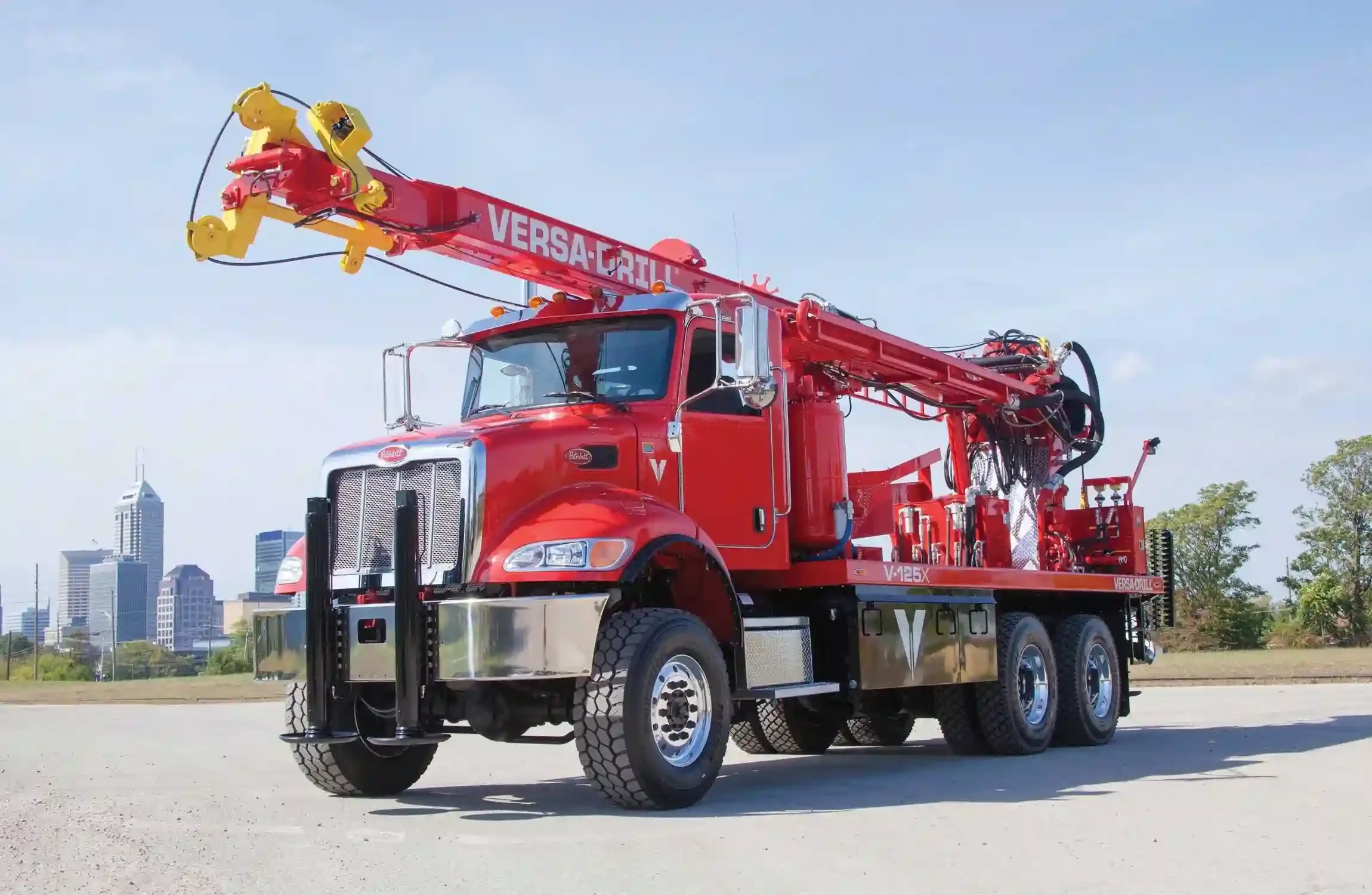

Versa-Drill V-125X

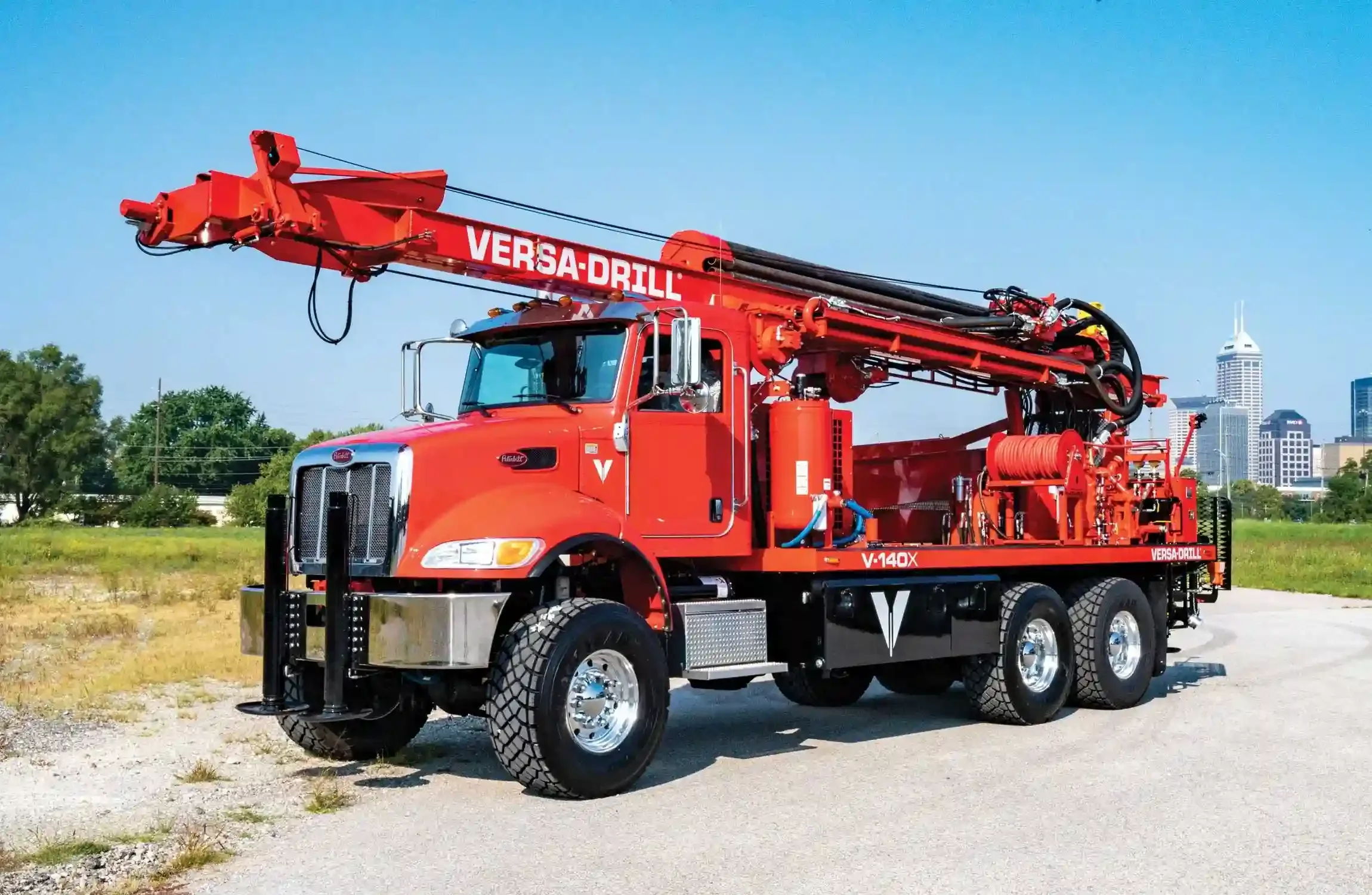

Versa-Drill V-140X

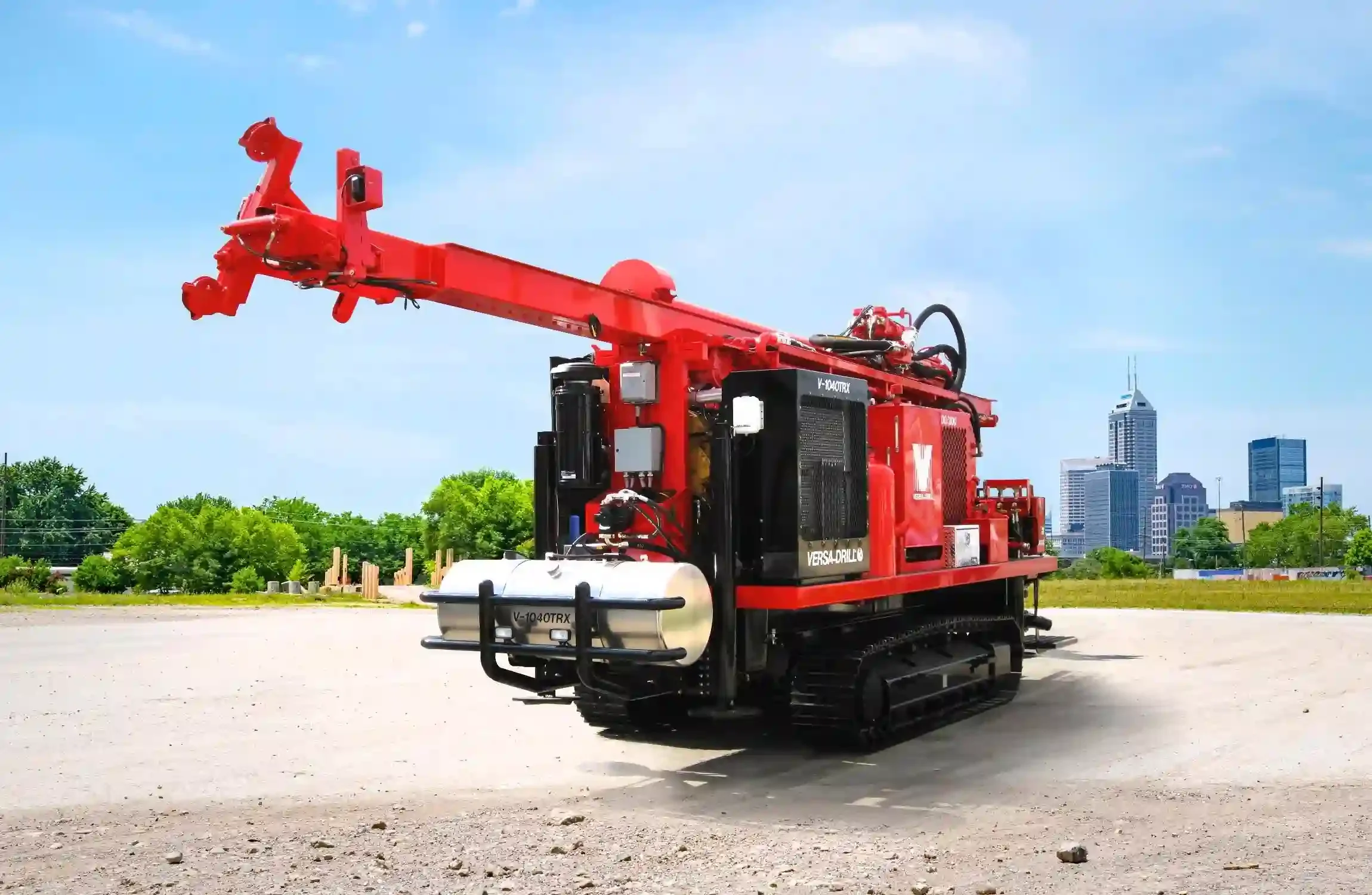

Versa-Drill V-140TRX
Versa-Drill MARK50

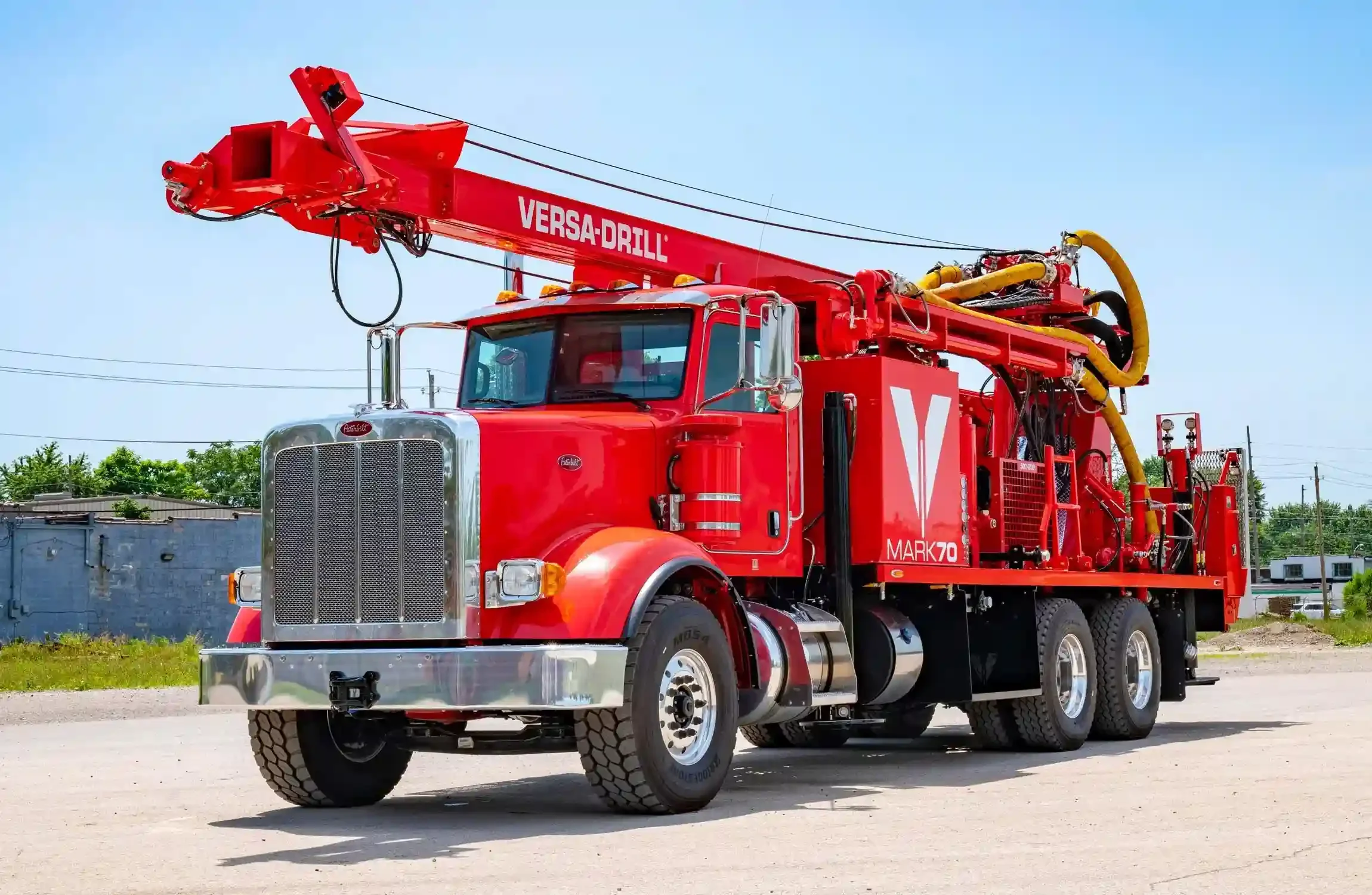

Versa-Drill MARK70
