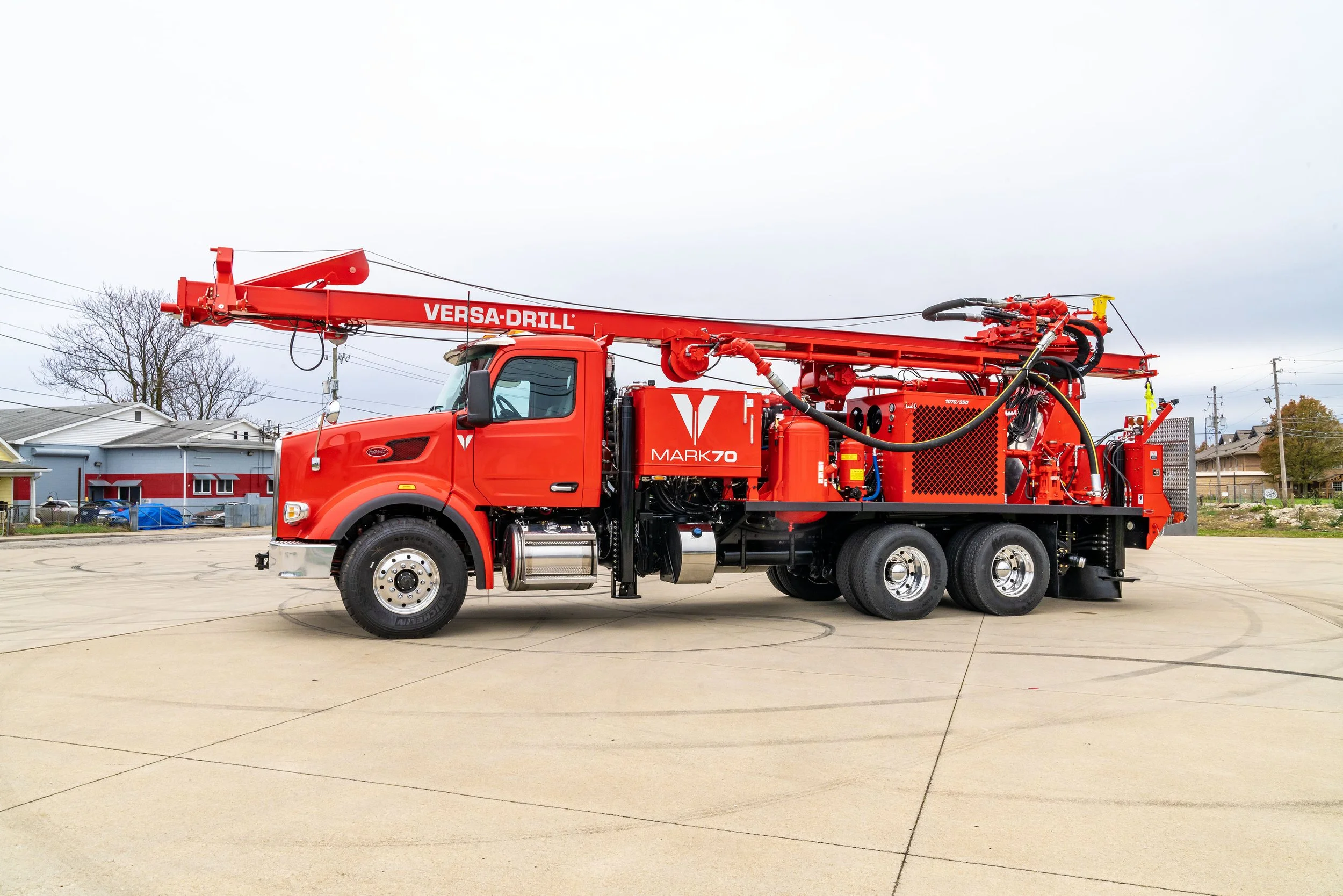

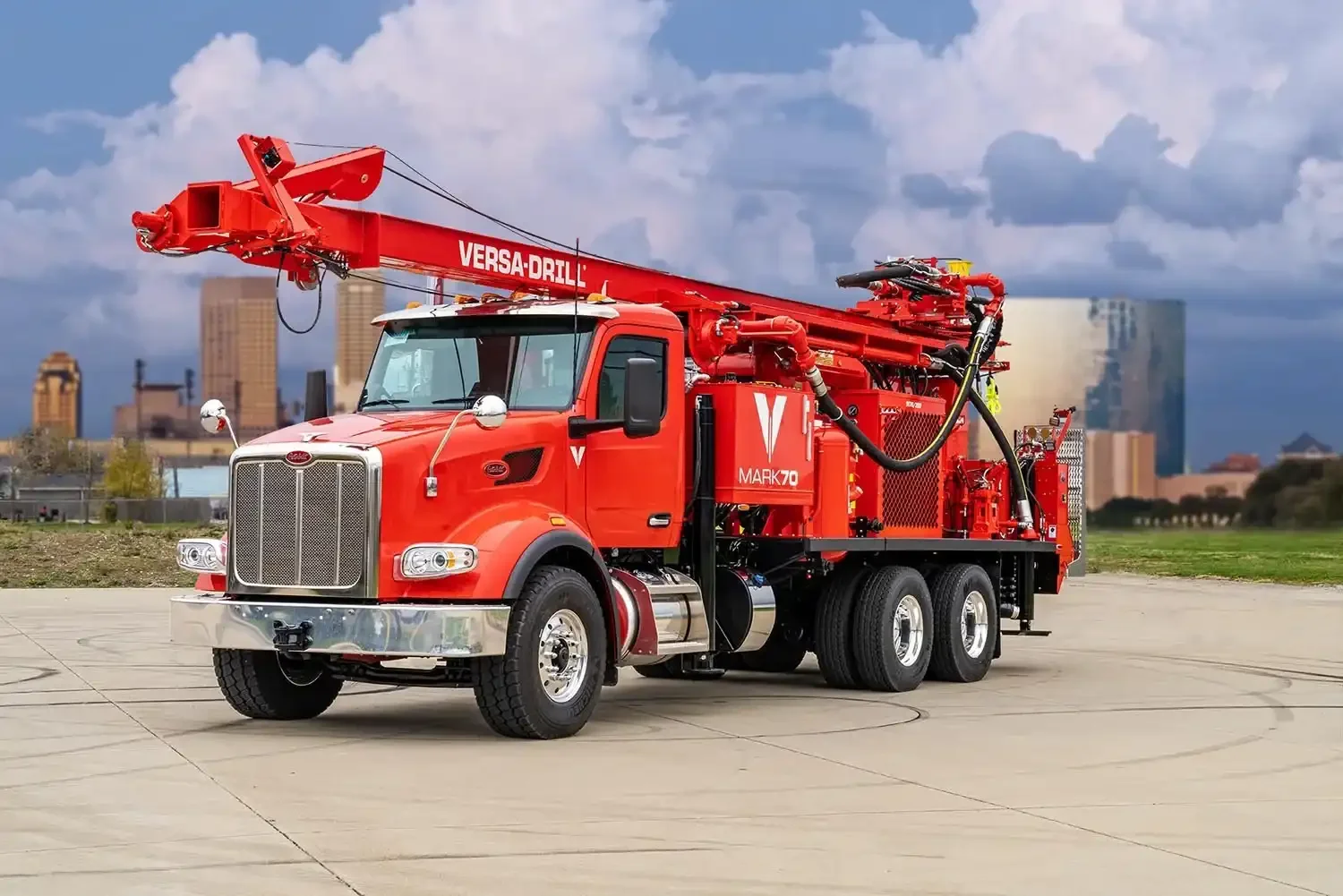

Versa-drill MARK70 Drilling Rig
The Versa-Drill MARK70 drilling rig provides astonishing power alongside our proven durability and ease.
Combining the reputable efficiency of past drills with innovative technology, the water well drilling rig MARK70’s size and drilling abilities makes this air-rotary drilling rig a note-worthy addition to any fleet.
With 70,000 lb pullback and 28,000 lb pulldown, the water well drilling rig MARK70 proves its strength among the Versa-Drill fleet. Its exceptional, easy-to-use technology makes its compressor air drilling function stand out from other drills in a competitive market. For the toughest jobs, rely on Versa-Drill’s tested grit and the MARK70’s impressive air and mud drilling capabilities.
Applications for the MARK70 drilling rig:
Air Rotary Drilling
Cathodic Protection Drilling
Water Well Drilling
Exploration Drilling
Mark70 drilling rig spec sheet
Standard Features and Specifications
CARRIER
Peterbilt 567 6x4
Cummins ISX with 605 HP
13-speed transmission.
210-gallon fuel tanks
TRANSFER CASE
NAMCO
HYDRAULIC SYSTEM
Bosch Rexroth
TOP HEAD
Variable 3-speed/torque with 2.4” thru-hole
0-125 rpm @ 8,100 lbf·ft
0-175 rpm @ 5,840 lbf·ft
0-250 rpm @ 3,545 lbf·ft
DERRICK & FEED SYSTEM
26’ top head travel
70,000 lbs pullback
28,000 lbs pulldown
158 FPM up
235 FPM down
ROD HANDLING
4.5”x20’ - 25 rod automated
3.5”x20’ - 15 rod carousel/15 rod box
4.5”x20’ - 11 rod carousel/9 rod box

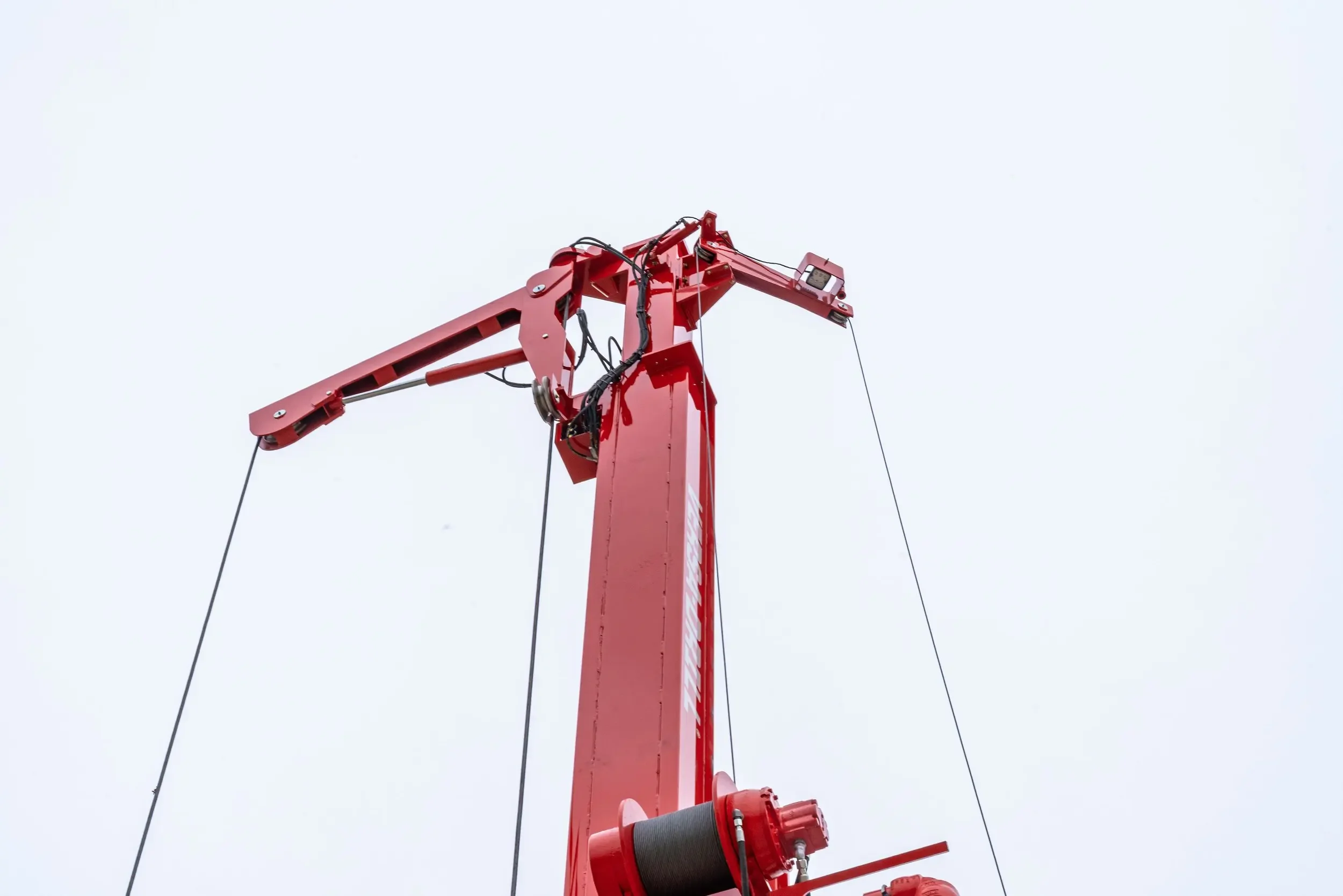

MAIN WINCH
18,000 lb.
CENTRALIZER TABLE
20” through centralizer bushings
24” fully open

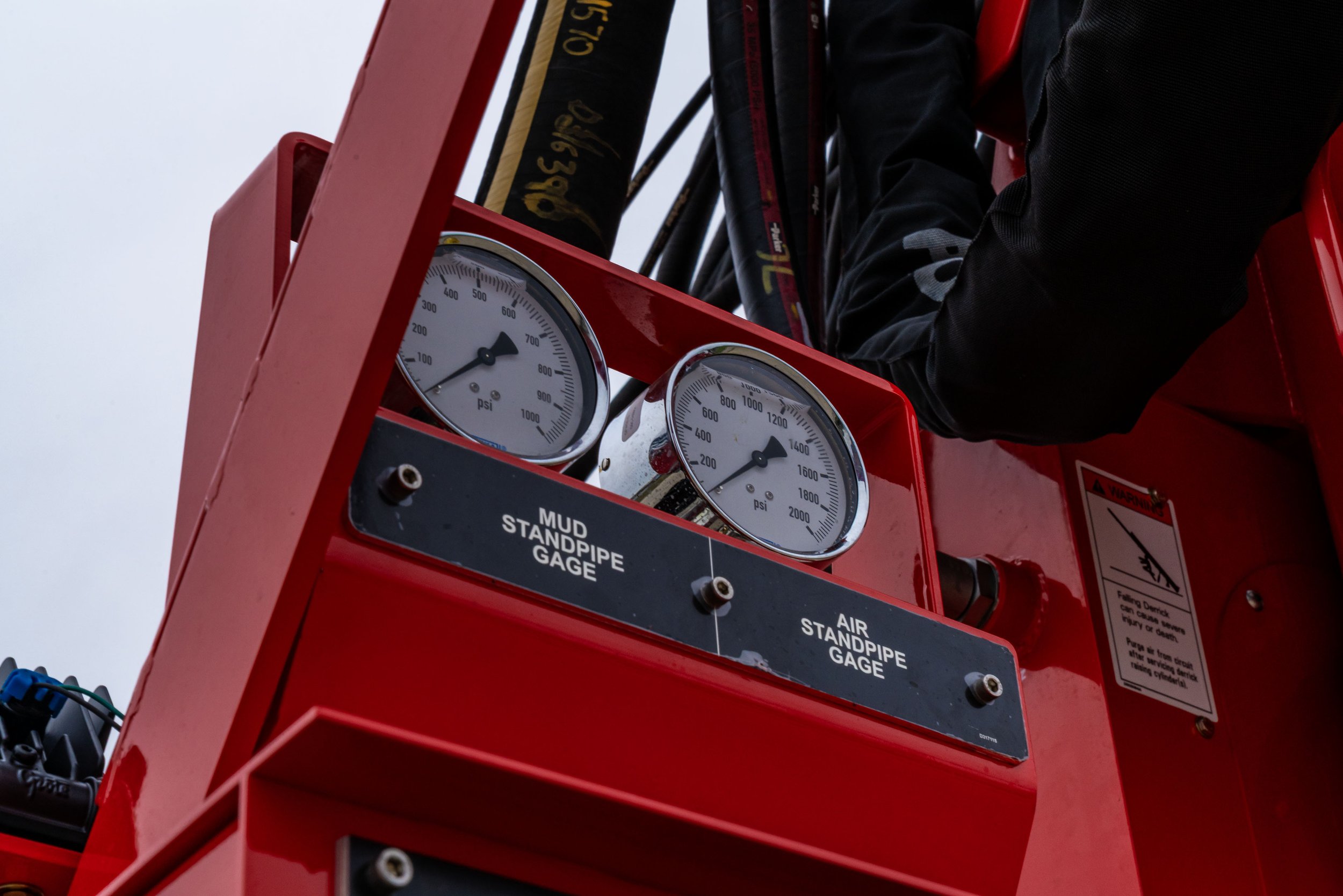

CONTROL PANEL
Electric over hydraulic controls
Marine grade electric switches
Hydraulic joysticks
12” touch screen display
Twin aluminum platforms
Aluminum console cover
LEVELING JACKS
Two 36” stroke independently controlled
Two 48” stroke independently controlled
WORK LIGHTS
8 LED night lights
TOOLBOXES
14”x12”x24”
24”x24”x30”
OVERALL DIMENSIONS
Length: 40’
Width: 8.5’
Derrick up height: 44’
Derrick down height: 13’4”
Options (at additional cost)
MAIN WINCH
25,000 lb.
AUXILIARY WINCH
4,000 lb.
8,000 lb.
Free fall options available
MUD PUMP
4x3x13 centrifugal 425 gpm/300 psi
5x6 piston 200 gpm/310 psi (skid mounted)
5.5x8 piston 317 gpm/338 psi (skid mounted)
AIR COMPRESSOR
500 cfm/200 psi Vanair
600 cfm/250 psi Vanair
1070 cfm/350 psi Doosan/Bobcat
LINE OILER
7-gallon venturi
WATER INJECTION
25 gpm FMC
75 gpm American Mfg Company
Foam pulse pump
ADDITIONAL OPTIONS
0-50 gpm/5,000 psi auxiliary hydraulics
TIREBOSS™ tire pressure control system
Swing out grouter (multiple options)
Hose reel (multiple options)
Aluminum catwalk
Remote pendant for winches & jib boom
Versa-Rod spinner
1-2-3 slot hammer holder
Stabilizer bushings
300-gallon mud pit assembly
The MUD MANAGER solids control system
Cribbing rack
Chain wrench

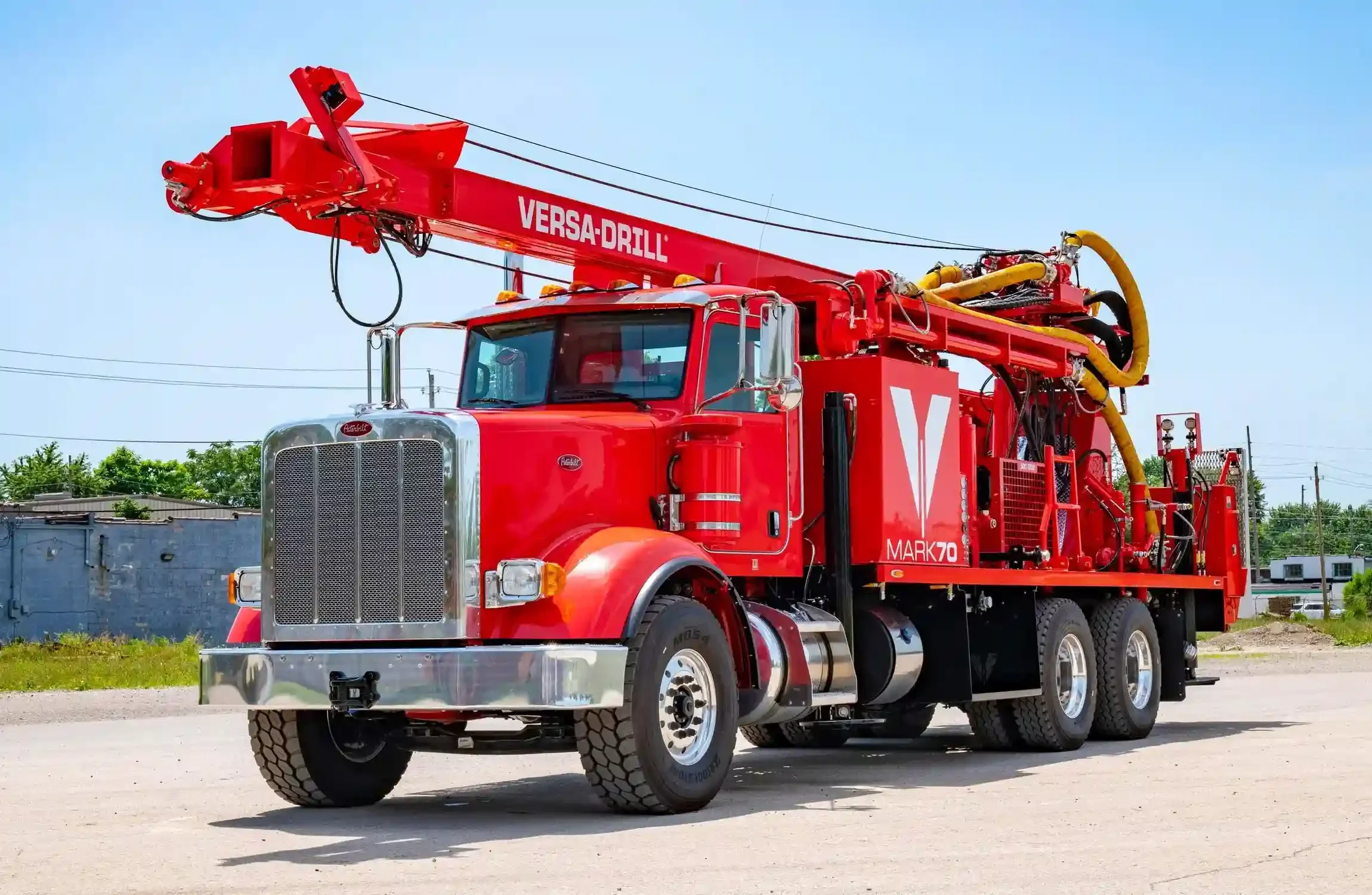

Versa-Drill MARK70

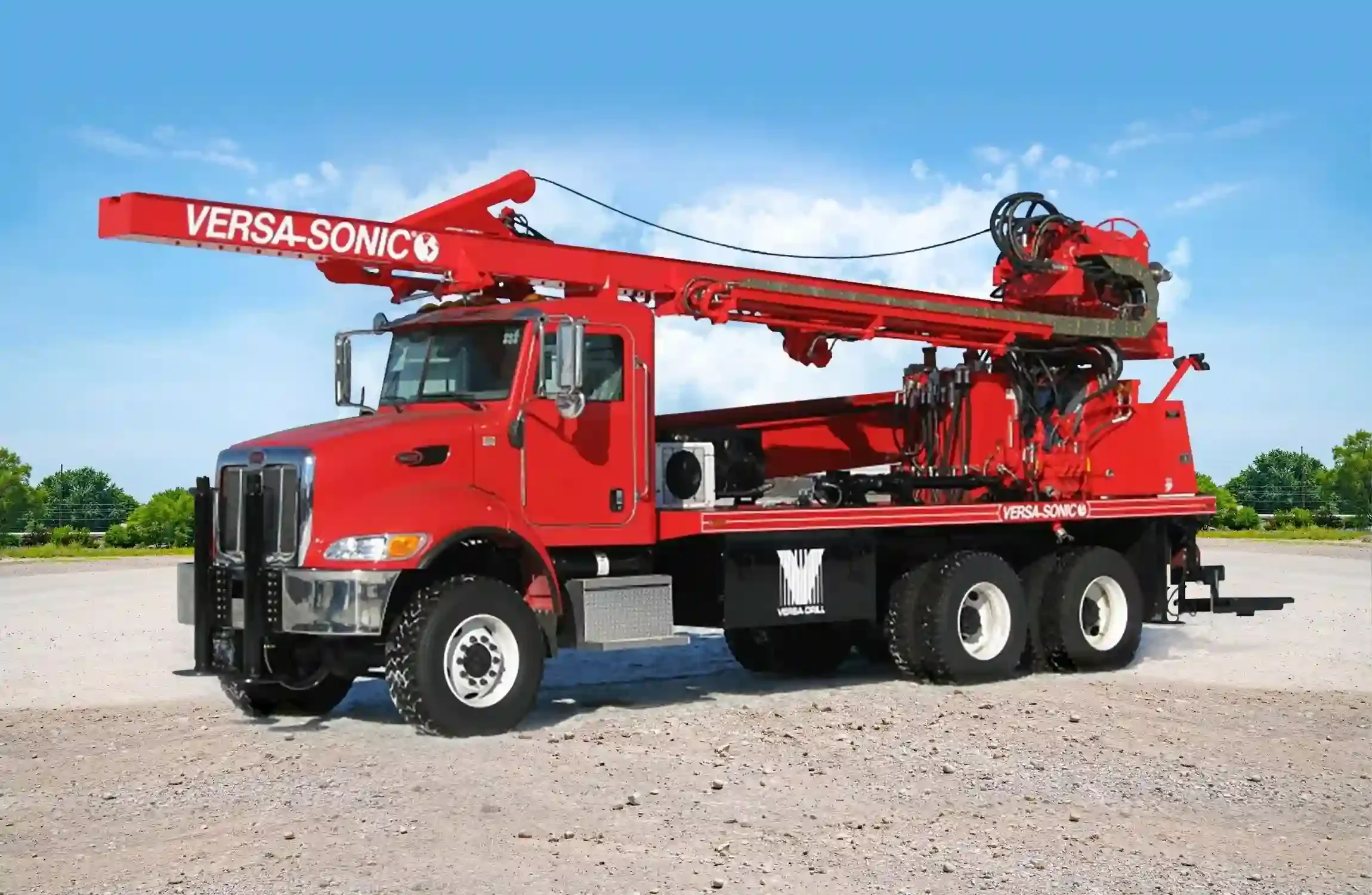

Versa-Drill Versa-Sonic

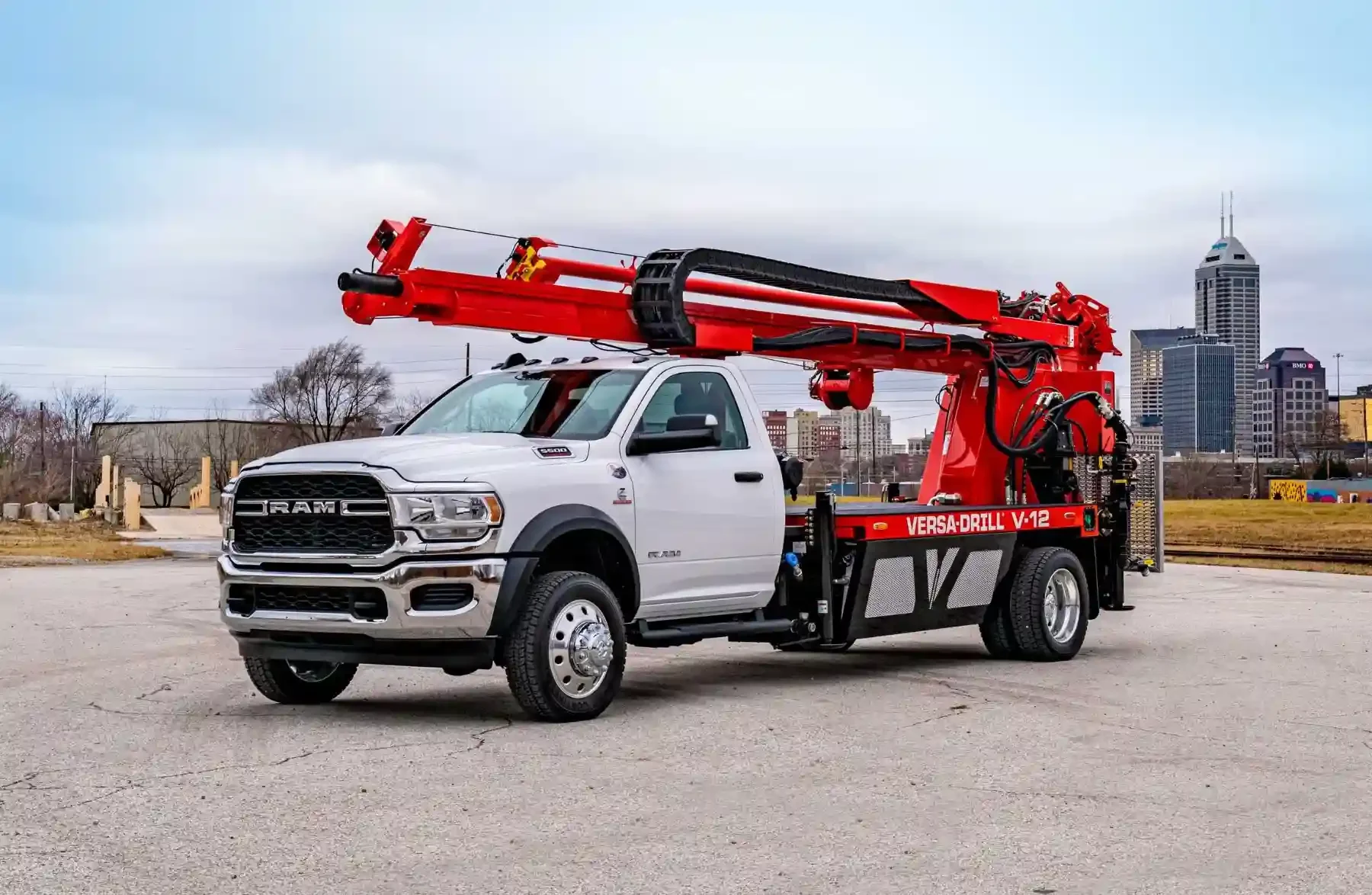

Versa-Drill V-12

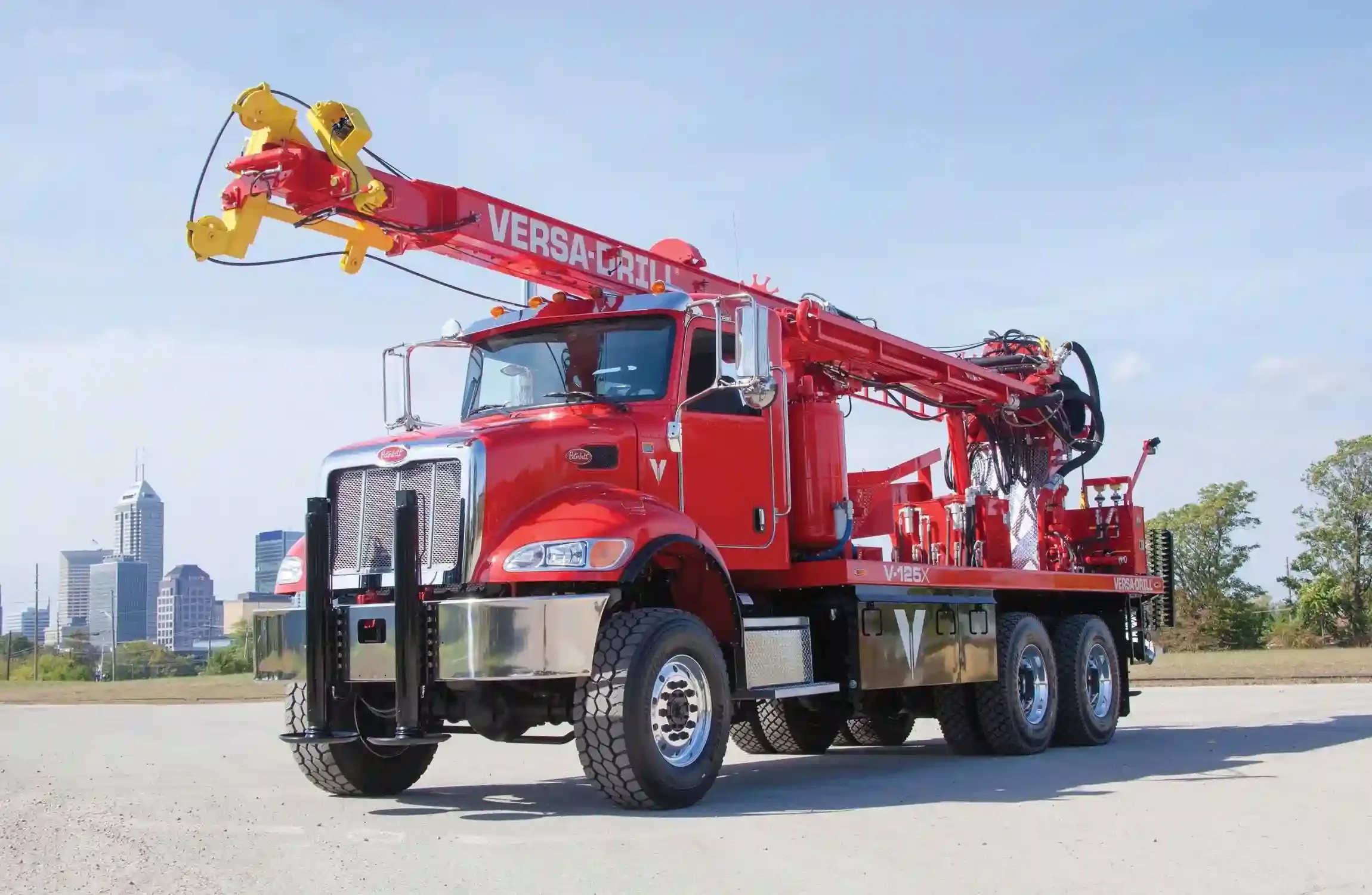

Versa-Drill V-125X

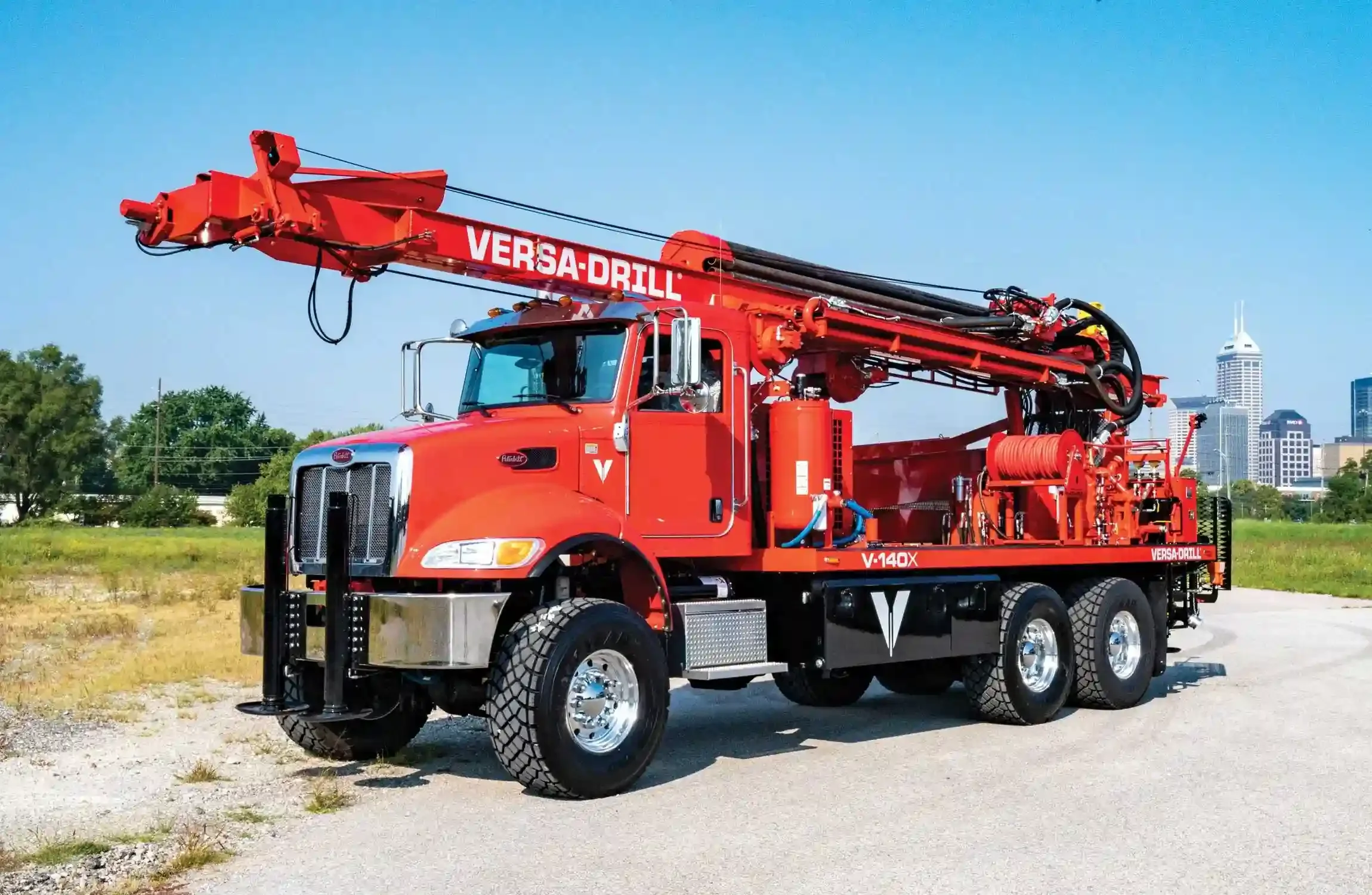

Versa-Drill V-140X

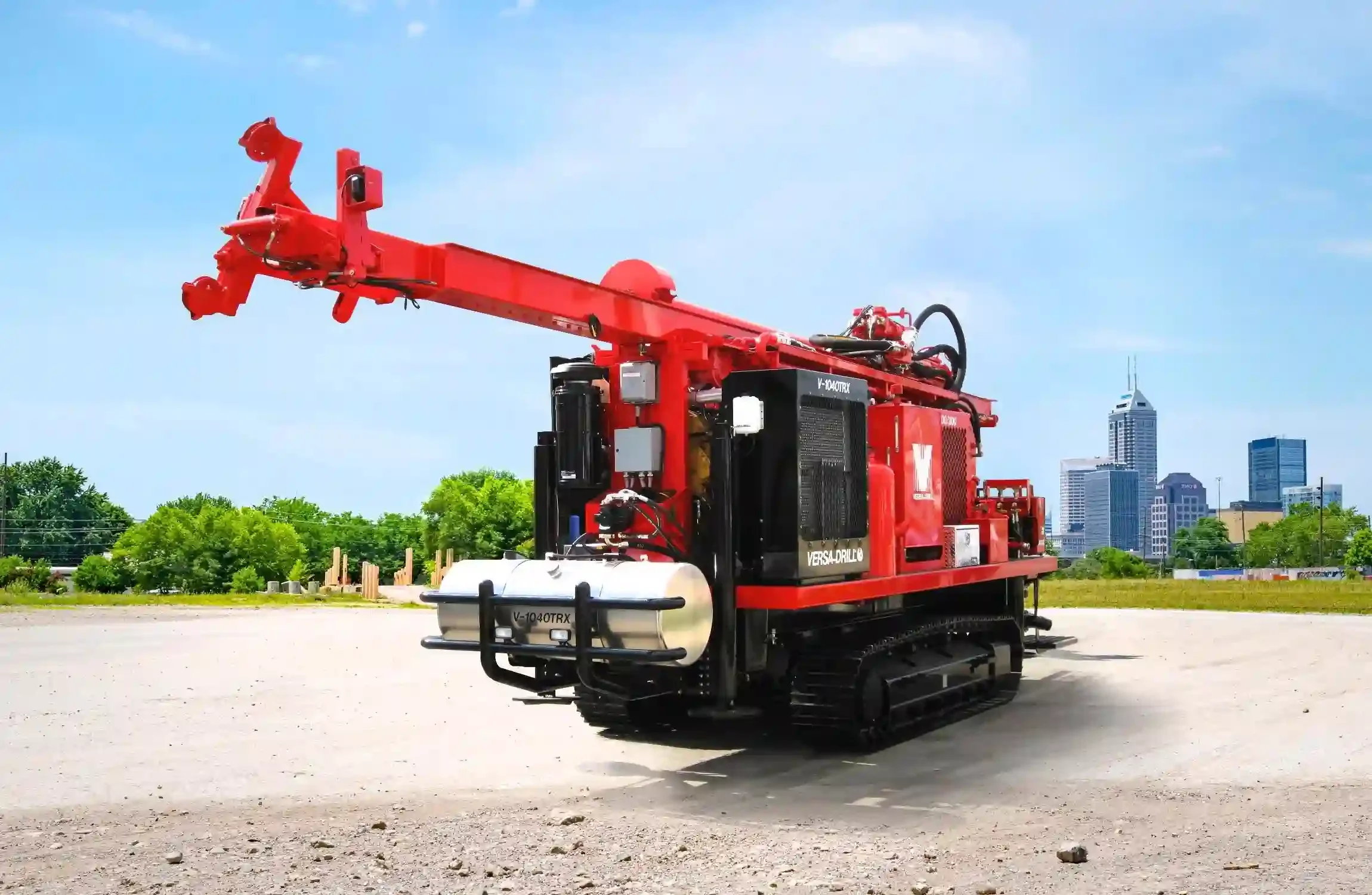

Versa-Drill V-140TRX

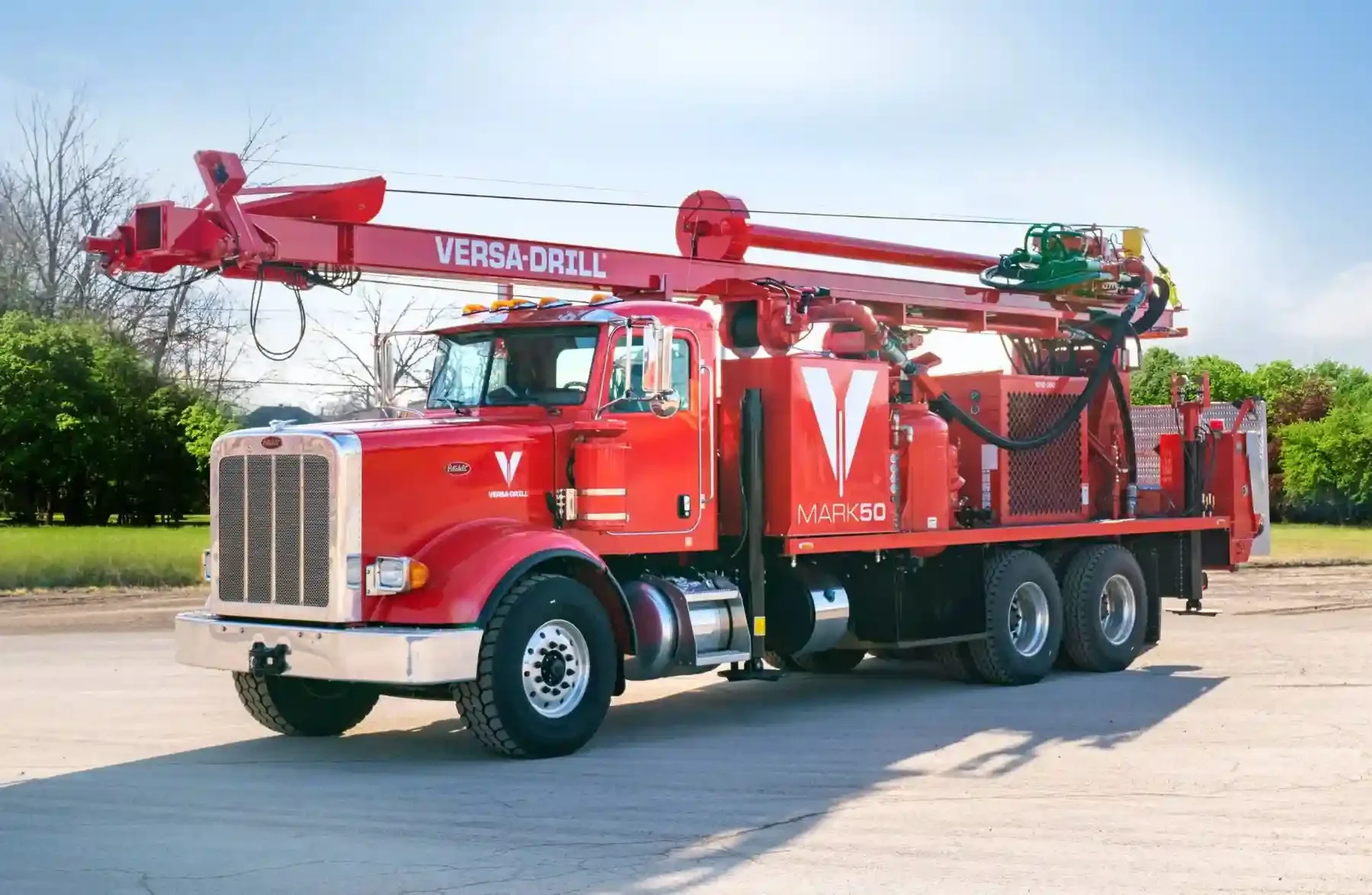

Versa-Drill MARK50
